Description
Condition
UPS is in NEW AND UNUSED CONDITION the original outer packaging will have some cosmetic damage and will have been opened to check contents. Sold with full manufacturer’s warranty. VAT invoice provided.
Specification
Specifications
General
Device Type
UPS – rack-mountable
Height (Rack Units)
2U
Bundled with
APC UPS Network Management Card
Power Device
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 – 286 V
Input Voltage Range (Adjustable)
AC 151 – 302 V
Frequency Provided
47 – 63 Hz
Frequency Required
50/60 Hz ± 3Hz
Input Connectors
1
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 230 V ± 5% – 47 – 63 Hz
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
375 Joules
Circuit Protection
Circuit breaker
Battery
Technology
Lead Acid
Run Time (Up To)
5.4 min at full load ¦ 16 min at half load
Recharge Time
3 hours
Transfer Time
4 ms
Features
Maintenance free, sealed, leak-proof
Networking
Remote Management Interface
Ethernet, RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) – RJ-45 ¦ 1 x management (USB) – 4 pin USB Type B ¦ Management (Ethernet) – RJ-45
Expansion Slots
1 (total) / 0 (free) x SmartSlot
Miscellaneous
Included Accessories

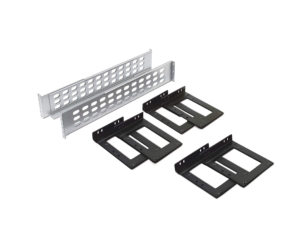

Rack mounting rails, temperature probe
Cables Included
Serial cable – external ¦ USB cable – external ¦ Power cable – external – 2 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy metre
Compliant Standards
GS, VDE, IEC 62040-2, IRAM, RoHS, WEEE, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1
Software / System Requirements
Software Included
APC PowerChute Business Edition
Manufacturer Warranty
Service & Support
Limited warranty – 3 years ¦ Limited warranty – batteries – 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 – 95%
Sound Emission
55 dBA
Dimensions & Weight
Width
48 cm
Depth
68.3 cm
Height
8.6 cm
Weight
42.22 kg
Dimensions & Weight (Shipping)
Shipping Width
60 cm
Shipping Depth
98 cm
Shipping Height
25.4 cm
Shipping Weight
49.63 kg
